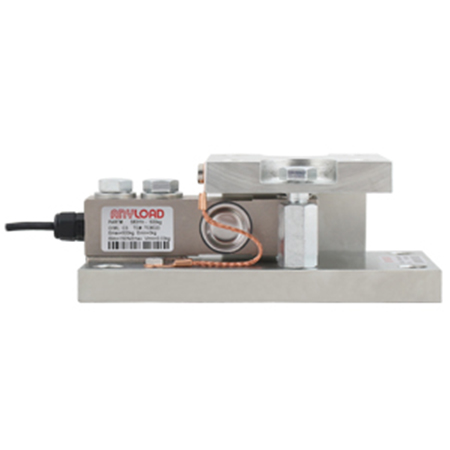

563YHM4 Compression Weigh Module

Assembles: 563YH single ended beam load cell
Material: Alloy steel
Capacities: 100lb-20Klb/100kg-10t
NTEP certified load cells from 1Klb-10Klb
OIML certified load cells from 500kg-2.5t
CE , RoHS and Ex certified load cells
Overloading protection and with 50% rated load anti-lifting protection
Rocker pin loading design
Equipped with lateral stops
Load cell not included

Part Number

Clear

Download data sheet

Download Drawings-563YHM4(100-SE5K)lb

Download Drawings-563YHM4(5-10)Klb

Download Drawings-563YHM4(15-20)Klb

Download Assembly Guides
