| Rated Capacity | 500kg, 1t, 2t |
| Full Scale Output | 2mV/V ± 0.1% |
| Zero Balance | ± 0.05mV/V |
| Non-linearity | < ± 0.023% |
| Repeatability | < ± 0.023% |
| Hysteresis Error | < ± 0.023% |
| Creep in 30 minutes | < ± 0.030% |
| Input Resistance | 1500Ω ± 50Ω |
| Output Resistance | 1400Ω ± 10Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0023% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0120% of Cn/k |
| Compensated Temperature Range | –10°C to 50°C/14°F to 122°F |
| Service Temperature Range | –30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded seal |
| IP Rating | IP68 |
Canister and Disk

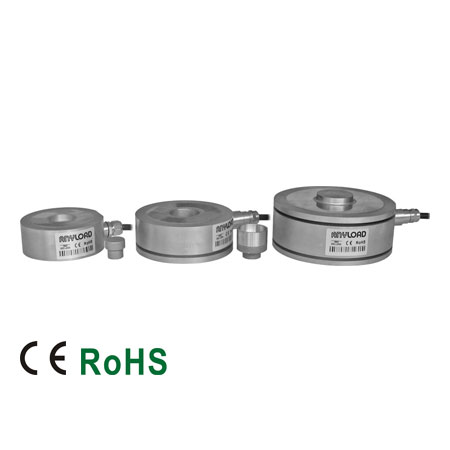

363RS Compression Load Cell
- Material: Stainless steel
- Rated Capacities: 500kg, 1t, 2t
- Full Scale Output: 2mV/V ± 0.1%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68
- CE and RoHS certified
- Mounting hardware included
| Manufacturer | Model |
| Metter-Toledo | RLC |
| Vishay Revere Transducers | RLC |
