| Rated Capacity | 50N, 100N, 500N, 5kN, 20kN, 50kN, 100kN |
| Full Scale Output | Cap. ≤ 50N: 1.0mV/V ± 20%; Cap. > 50N: 2.0mV/V ± 20% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.5% |
| Repeatability | < ± 0.5% |
| Hysteresis Error | < ± 0.5% |
| Creep in 30 minutes | < ± 0.5% |
| Input Resistance | 700Ω ±25Ω |
| Output Resistance | 700Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Nominal Temperature Range | -10°C to 40°C/14°F to 104°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP66 |
Compression, Load Buttons

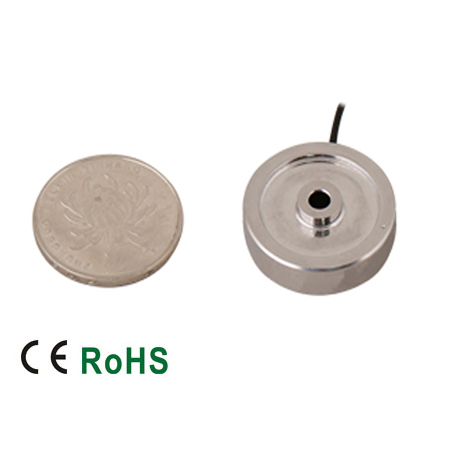

296AS Load Button
Description:
Load buttons are compact force measurement solutions ideal for applications where weight and space conservation are top priorities. The 296AS stainless steel IP66 waterproof construction provides superior value without sacrificing reliability. Its innovative design allows a bolt to pass through vertically to measure compression force; a simple, compact, time-saving weighing solution.
Features:
- Material: Stainless steel
- Rated Capacities: 50N, 100N, 500N, 5kN, 20kN, 50kN, 100kN
- Full Scale Output: Cap. ≤ 50N: 1.0mV/V ± 20%; Cap. > 50N: 2.0mV/V ± 20%
- Safe Overload: 150% of full scale
- Breaking Overload: 300% of full scale
- IP Rating: IP66
