| Rated Capacity | 30kg, 50kg, 100kg, 150kg, 200kg, 500kg, 1t, 2t, 5t |
| Full Scale Output | Cap.≤30kg: 1.0mV/V±20%; Cap.≥50kg: 1.5mV/V±20% |
| Zero Balance | ± 0.03mV/V |
| Non-linearity | < ± 0.5% |
| Repeatability | < ± 0.3% |
| Hysteresis Error | < ± 0.5% |
| Creep in 30 minutes | < ± 0.5% |
| Input Resistance | 375Ω ±25Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.020% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.020% of Cn/k |
| Compensated Temperature Range | –10°C to 50°C/14°F to 122°F |
| Service Temperature Range | –30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP66 |
Compression, Load Buttons

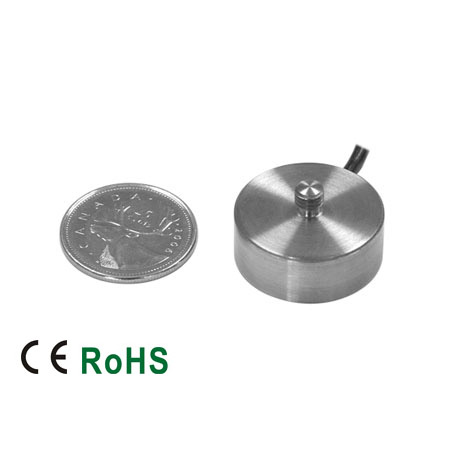

247AS Load Button
Description:
The 247AS is a versatile and cost-effective stainless steel load button with IP66 water resistance and corrosion resistance. The compact design is ideal for compression weighing and force measurement wherever space and weight are limited. This model is particularly popular in automation, vehicle maintenance, sports science, and many other industries.
Features:
- Material: Stainless steel
- Rated Capacities: 30kg, 50kg, 100kg, 150kg, 200kg, 500kg, 1t, 2t, 5t
- Full Scale Output: Cap.≤30kg: 1.0mV/V±20%; Cap.≥50kg: 1.5mV/V±20%
- Safe Overload: 150% of full scale
- Breaking Overload: 300% of full scale
- IP Rating: IP66
